Band Decoder & Antenna Switch

April 30, 2013: Remote Box Done!

On the bench .. Made in RD Congo 9Q

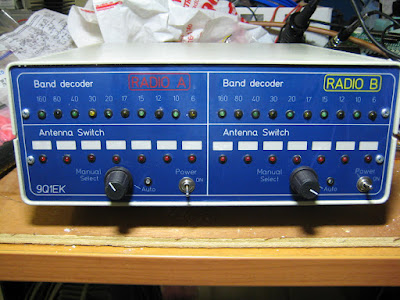

I plan to build a band decoders and HF antenna switch. For two radios, Icom 756PROIII and YAESU FT-2000. For Yaesu, no problem, Output data works fine. For the Icom, no other choice than go through the CI-V output rather than the ACC2 connector without WARC band voltage.
I will use the vacuum relays Jennings models RJ2B or RF3A.

Updated on time.. 73 Georges 9Q1EK - VE2EK - ZS1II
------------------
March 19, 2013: Top Box Done!
Output of switch box is protected with Lightning arrestor DIN 7/16.
All Coaxial cable will be grounded at top of tower before entry to switch box with grounding kit Andrew for ½ and 7/8 coaxial cable. For sure also at the bottom of tower.

* Accessories for “Outside ground point” of shack entry for HF, VHF, UHF, SHF antennas.

Huber & Suhner gas discharge tube  3402 with connector N and DIN 7/16.
Surge arrestor capsule = 1200V and 1500V.
